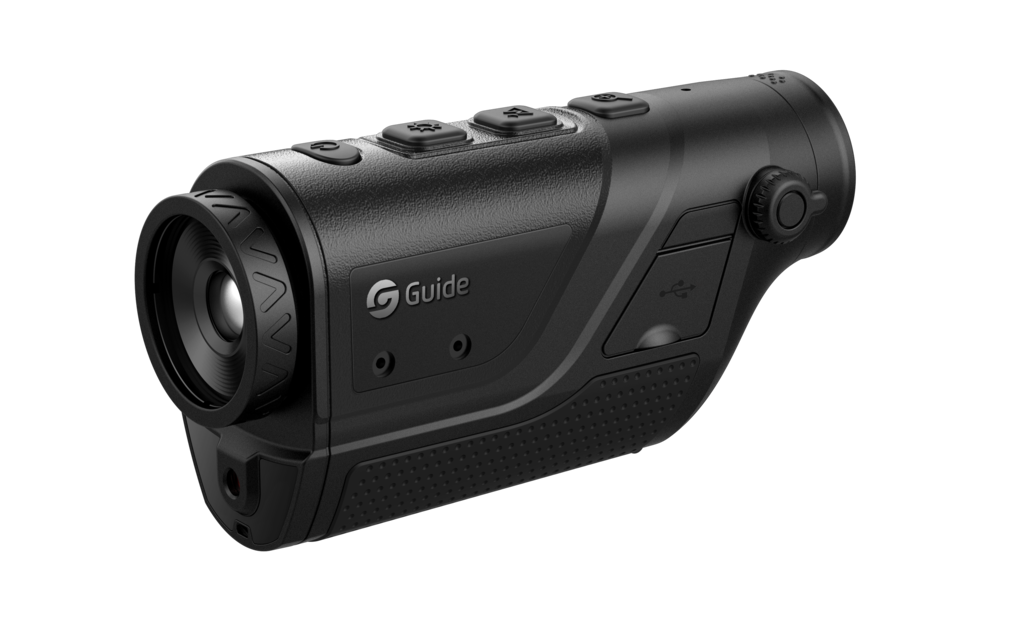

Handheld Thermal Imaging Monocular

The TD Gen2 LRF Series is the industry's first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.

384x288 IR Resolution

19mm/F1.0 Focal Length

Manual Focusing

10 Hours Battery Life

High-brightness AMOLED Display

The 12μm high sensitivity infrared detector and a 0.23-inch AMOLED display with 384 x 288 resolution to better depict image edges and details, providing a high-contrast and detailed thermal image for a comfortable viewing experience.

Enhanced Image Processing Algorithms

The TD Gen2 LRF Series uses a new approach to image optimisation depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.

10 Hours Strong Battery Life

Over 10 hours of active use, 3 hours improvement over the previous generation. Standard 18650 battery, easy to purchase.

New User Interface design

New user interface design to simplify operation; iconized operation without language restrictions.

Real-time Sharing by WIFI

Connect the APP on the phone via WIFI, sharing the wonderful moment in real-time.

OTA Upgrade

Support device firmware updates by connecting to TargetIR APP for high efficiency.
